ciri-ciri
●Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade.
●Support ONU auto-discovery/Link detection/remote upgrade of software
●Meet 802.11 a/b/g/n/ac WIFI technical standard
●Support VLAN transparent, tag configuration
●Support multicast function
●Support DHCP/Static/PPPOE internet mode
●Support port-binding
●Support OAM/OMCI plus TR069 remote management
●Support data encryption and decryption function
●Support Dynamic Bandwidth Allocation (DBA)
●Support MAC filter and URL access control
●Support power-off alarm function ,easy for link problem detection
●Specialized design for system breakdown prevention to maintain stable system
●rangkaian EMSpengurusan berdasarkan SNMP, mudah untuk penyelenggaraan
Spesifikasi
item | Parameter | |
Antara muka
| EPON/GPONAntara muka | SC/UPC mod tunggal gentian tunggal GPON:FSAN G.984.2 standard, Class B plus GPON: 2.488Gbps/1.244Gbps hiliran/hulu Wavelength: Transmit: 1310nm Receiver: 1490nm Receiving sensitivity : GPON:-28dBm EPON:-27dBm Saturated power : GPON:-8dBm EPON:-3dBm Transmitting power : GPON:0.5-5dBm EPON:0-4dBm |
Antara Muka Ethernet | 410/100/1000J auto-rundingan Mod penuh/separuh dupleks | |
Power Interface | Bekalan kuasa 12V DC | |
Pengurusan Rangkaian | Mod Pengurusan | OMCI, OAM, TR069, WEB, Telnet |
Pengurusan | Pemantau status, Pengurusan konfigurasi, Pengurusan penggera, Pengurusan log | |
Ciri-ciri fizikal | Kuasa | Penyesuai bekalan kuasa 12V DC/1A luaran Penggunaan kuasa:<> |
Fizikal | Dimensi Item: 160mm(L)139.5mm(W)28.5mm(H) Berat Bersih Item: kira-kira 239g | |
alam sekitar | Operating temperature: 0 to 40ºC |
Antara muka produk dan definisi LED
Penunjuk | Penerangan | ||
1 | WPS | WPS status | Blinking: In the connected state, waiting for the device to access; Off: In the not connected state |
2 | WIFI | WIFI | Berkelip:Data sedang dihantar On:WIFI function Open Mati:Fungsi WIFI Tutup |
3 | LAN | Status Port LAN | Hidup: Sambungan Ethernet adalah normal; Berkelip: Data sedang dihantar melalui port Ethernet; Mati: Sambungan Ethernet tidak disediakan; |
4 | LOS | Isyarat optik XPON | Hidup: Kuasa optik lebih rendah daripada sensitiviti penerima ; Mati: Optik dalam keadaan normal |
5 | PON | ONT Register | Hidup: Berjaya mendaftar ke OLT Berkelip: Dalam proses mendaftar ke OLT; Mati: Dalam proses mendaftar ke OLT; |
6 | PWR | Status kuasa | Hidup: ONU dihidupkan; Mati: ONU dimatikan kuasa; |
Pembinaan Rangkaian
Maklumat pesanan
Nama Produk | Model Produk | Penerangan |

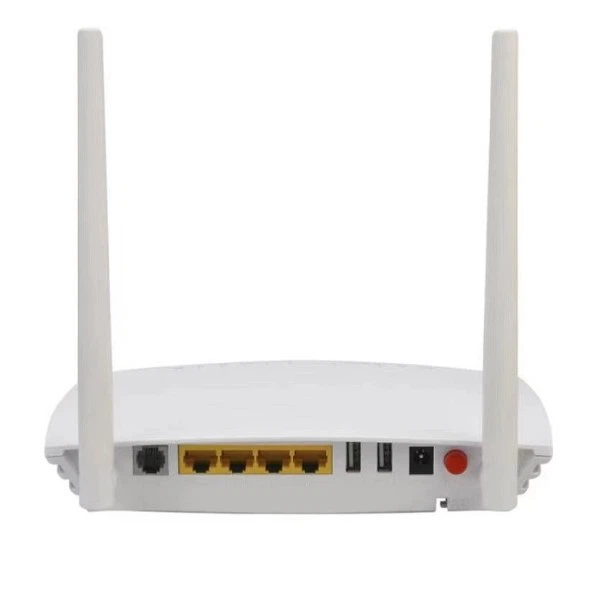

GPON HGU | 1GE,3FE Ethernet interface,1RJ11,1GPON adaptive interface, support dual-band, WIFI, plastic casing, external power supply adapter |
